November 15, 2017


Enhanced RSA LCs with the Load Combination Generator


The Load Combination Generator in RISA-3D can now include earthquake loads in load combinations to reflect Response Spectra Analysis.

The Load Combination Generator is available when the Load Combination spreadsheet is open. Just click on the ‘LC Generator’ button found in the RISA Toolbar. Under Seismic tab, select ‘X and Z’ for both Seismic Load Options and Overstrength LC Options and select “RSA?”.

RSA LC 1

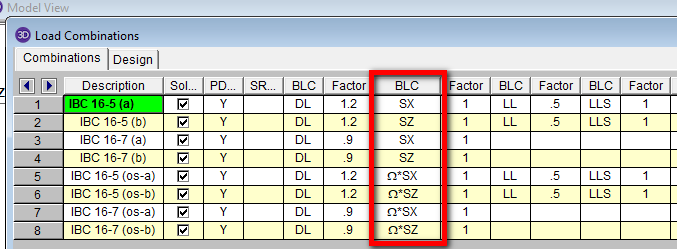

Select Generate and the load combinations from the relevant code and region will appear in the Load Combination spreadsheet with the Response Spectra Results.

RSA LC 2

Tags: RISA-3D Seismic
