April 9, 2013


Internal Force Summation Tool Basics


The Internal Force Summation Tool has the ability to "cut through" elements in the model and produce a summation of forces that corresponds with a given load combination. For this example, we will use the following model and review the summation of forces in the horizontal concrete plates.

IFST 3 D 1

First, click on the 'Select Elements by Property' button and once the dialogue opens, choose the 'Plates' tab.

Selectelementsplates

With the dialogue open, enable the checkbox for 'Materials' and select 'gen_ConcNW'. Then click 'Select' to graphically select all the concrete plates.

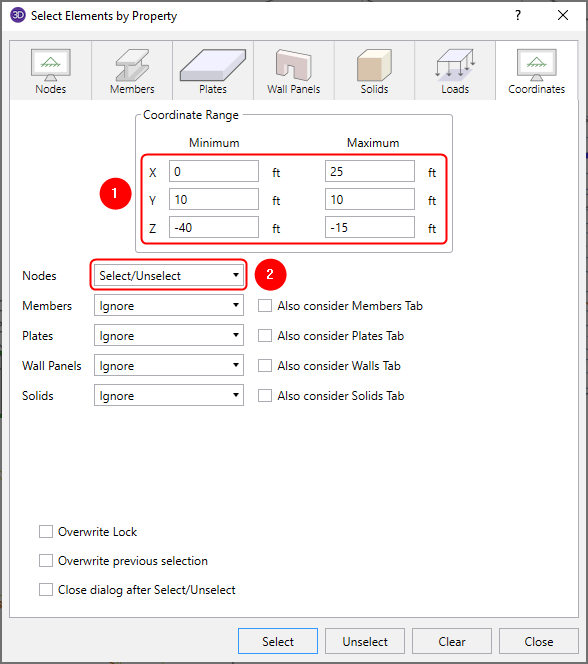

With the concrete plates selected, click on the 'Coordinates' tab and input the Coordinate range as shown in the image below along with choosing 'Select/Unselect' from the 'Nodes' drop-down box. The click 'Select' to graphically select the nodes based on the defined selection criteria.

Selectioncoordinates

With the concrete plates and nodes selected graphically, click 'Close'. Next, click the 'Dim Lock' button found on the 'Selection Toolbar' in order to lock and dim all unselected parts of the model.

Dimlock

Your model should now look like this:

Dimmedmodel

With the appropriate elements selected, solve either a single combination or a batch solution.

IFST 3 D 4

After the solution is complete, click on the 'XZ' view button found on the View Toolbar in order to see the model in plan view.

Planview

Next, select the Internal Force Summation Tool from the 'Selection Toolbar' on the left side of the 3D window.

IFST 3 D 5

To define the cutting plane, first select the node at coordinate (15, 10, -40) and then click on the node at coordinate (15, 10, -15) twice. This will define the end of the cutting plane as well as lock the cutting plane to that exact location.

Platecutting

Note: The Internal Force Summation Tool uses a new axis so it's important to view your model in the Plan or Elevation View to get accurate results.

After making the 3rd click, the Internal Force Summation results dialog will appear. The axes shown in the dialog correspond to the direction in which the cutting plan was selected with the "1" direction running along the line from Point 1 to Point 2.

Internalforcedialog

Tags: RISA-3D Results
