Why Don’t My Response Spectra Reactions Satisfy Statics?

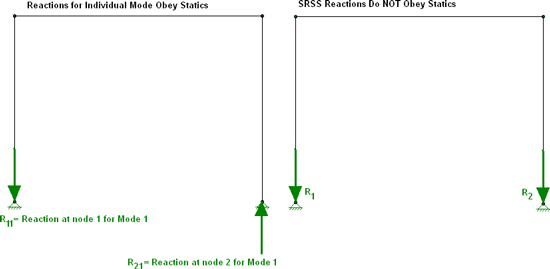

The applied loads in a response spectrum analysis (RSA) are the applied masses times the accelerations in the response spectra. Each mode of vibration produces its own set of joint reactions. The reactions for each mode obey statics as shown in the portal frame example shown below:

SRSS Reactions1

Response Spectrum Analysis involves the statistical combination of the response from multiple modes. A loss of sign results when the individual modal results are combined together to form the total RSA result. Below is an example of the equations used for Square Root Sum of Squares (SRSS) method:

SRSS Reactions2

The above equation makes it clear that the final results for R1 and R2 will have the same sign despite the fact that individual modal results (R11 and R21) may have had opposite signs. If this were a statically applied lateral load, the reactions would be equal and opposite with a total net upwards reaction of zero.

It is possible for the model to approximately match statics if the option to Use Dominant Mode for Signage is selected. This option merely looks at the reactions for the mode with the highest % mass participation and assigns a positive or negative sign to each joint reaction based on the results for that one individual mode. A model is generally considered to have a dominant mode if the mode with the highest mass participation in that direction is 70% or greater.

Seismic statics 1

Tags: RISA-3D Seismic Dynamics
