Masonry Wall - Design

The masonry wall panel element allows you to easily model, analyze and design masonry walls for in plane and out of plane loads for these specific codes:

Here we will explain the calculation concepts and code references used in the program. For general wall panel information, see the Wall Panels topic. For information on masonry design rules, see the Masonry Wall - Design Rules (this is where you can define block thickness and self-weight). For masonry wall modeling procedures, see the Masonry Wall - Modeling topic. For masonry wall results interpretation, see the Masonry Wall Results topic.

Note:

Shear Design - In Plane ASD

In Plane Shear Stress, fv

This stress is calculated from Equation 8-24:

where:

In RISA Anv is defined as follows:

where:

Note: If the 1.5x Shear Inc checkbox is checked in the Masonry Wall - Design Rules, then fv is factored up by a 1.5 factor. This option is available per section 7.3.2.6.1.2.

In Plane Shear Capacity, Fv

The program calculates the capacity, Fv, from Equation 8-22:

The program also checks to verify we do not exceed the Fv max value from Equations 8-23 and 8-24 (or interpolation between them) that is reported in the detail report.

Fvs is only required if fv > Fvm. If fv < Fvm, then the program will not add any shear reinforcement and Fvs = 0. If Fvs is required, then the program will back calculate a spacing, s, that will satisfy the steel shear capacity required. This shear spacing is reported in the detail report.

When shear reinforcement is required the program will also meet the d/2 or 48" spacing required by 8.3.5.2.1. If Fv max must be exceeded to pass the code check, the program will use Fv max as the capacity and state "Over Allowable" for the Shear Steel Spacing.

Note:

Shear Design - Out of Plane ASD

Out of Plane Shear Stress, fv

This stress is calculated from Equation 8-21:

Out of Plane Shear Capacity, Fv

The program calculates the capacity, Fv, from Equation 8-25 shown above, except that only the Fvm term is considered. There is no way to add shear reinforcing steel.

The program also checks to verify we do not exceed the Fv max value from Equations 8-26 and 8-27 (or interpolation between them) that is reported in the detail report.

Axial Design - ASD

In and Out of Plane Axial Stress, fa

The axial stress in a wall due to axial forces, fa, is calculated as:

This is applicable for all out of plane and in-plane masonry calculations. When fa < fb then the masonry has cracked and then a cracked section analysis is performed. See the Bending Design - ASD section below for more information on this procedure.

Note: In and out of plane stress, fa will be the same. However, the location where these forces are reported may be different. In plane forces will generally be reported at the base of a wall. Out of plane forces may be reported at the base (cantilevered walls) or at mid-height (simply supported walls).
Note: The program does not design masonry for net tension forces. fa will equal 0 ksi in these cases.

In and Out of Plane Axial Capacity, Fa

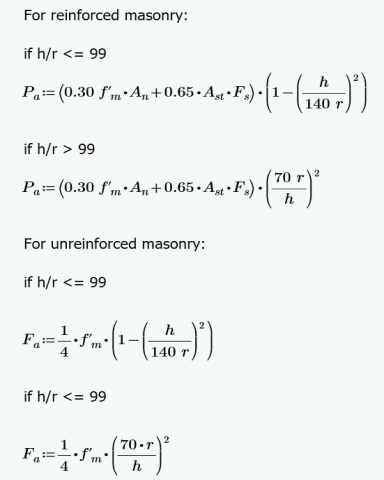

The calculation of Fa is per either Equation 8-13 or 8-14, depending on the h/r ratio. These equations match Equations 8-18 and 8-19 if you assume Ast = 0. RISA conservatively uses only the masonry in calculating the compression capacity. The equations are as follows:

where:

Note: The program does not design masonry for net tension forces. If there is net tension, Fa will still equal the compressive capacity of masonry.

Bending Design - ASD

In Plane Stresses fb and fs

These calculations are different depending on a cracked section or uncracked section. The wall is considered uncracked if fa (compression) > fb. The wall is considered cracked if fa (compression) < fb.

For uncracked masonry, the calculations are as follows:

where:

Because the masonry is uncracked, no stress can develop in the steel.

For cracked masonry, the program performs an iterative analysis to determine the section properties of the cracked wall.

The maximum masonry stress (fm) is obtained by solving the moment equilibrium equation as a quadratic equation of kd. This equation comes from vertical equilibrium ( C - P - T = 0 ).

Here is a representative wall with axial force and moment:

From this image we do a summation of moments about point T and come up with a quadratic equation in terms of kd.

An assumption is made for fm = fa + fb, where fa = P/A and fb = M/S. From this C and T is determined. Once we calculate a value for T we can then define the boundary zone steel required. The final solution is determined through iteration. Each iteration of the steel area is based on the amount of steel needed to create a 0.005 ksi difference in the calculated bending stress (fb) and is carried out until the calculated value of required reinforcement is less than the reinforcement provided.

The final values are given in the detail report:

A good reference for this iterative procedure is Section 7.10.1 of Design of Reinforced Masonry Structures, copyright 2001 by Narendra Taly and published by McGraw-Hill.

From this analysis fm is calculated. This must then be broken down into fa and fb for the detail report. Because Section 8.3.4.2.2 states:

the proportion is simplified. RISA will simply take fa = P/An for fa and the remaining value from fm is used as fb.

From the tension force in the wall, T, the program calculates the required number of boundary zone bars and places them in the wall. The reported code check is then based on:

Out of Plane Stresses fb and fs

The masonry bending stresses are referenced in UBC Section 2107.2.15 and are as follows:

However, if you are using a partially grouted wall where the neutral axis passes through the webs of your masonry, then RISA will do a T-section analysis to define the section properties. We use a similar analysis as if you were doing a t-beam analysis for a concrete tee section. For more information on this, see "Design of Reinforced Masonry Structures" by Narendra Taly, copyright 2001, example 6.3, P6.61.

The area in red is shown as the compression block in the image above.

In and Out of Plane Masonry Bending Capacity, Fb

For unreinforced masonry, the Equation 8-15 is:

For reinforced masonry, Section 8.3.4.2.2 states:

Because of this provision, RISA defines:

In and Out of Plane Steel Capacity, Fs

Section 8.3.3.1 defines the allowable steel stress, Fs.

In Plane Design - Strength

In Plane Axial Strength, Pn

This is calculated from Equations 9-15 and 9-16:

Note:

In Plane Moment Strength, Mn

The Mn value is based on the axial - moment interaction diagram for the wall based on strain compatibility at different levels of axial force. Once the interaction diagram is created the Mu is plotted and the code check is then calculated.

Note: In plane moment strength is solely accounted for by boundary zone steel. We do not use every bar in the wall and calculate the steel stress per bar. The "d" used for in plane design is from the extreme compression fiber to the centroid of reinforcement in the boundary zone. For a reference on this, see "Masonry Structures Behavior and Design" by Drysdale, Hamid, and Baker, copyright 1999.

For a wall with no axial force, the Mn can be calculated from the equation:

Note: The maximum usable masonry strain at the extreme compression fiber, emu, is assumed to be 0.0025. For assumptions of the extreme compression fiber for Seismic Detailing checks of Masonry Walls, refer to the Maximum Area of Flexural Tensile Reinforcement (Max. Flexural Rho Check - Strength) section.

In Plane Shear Strength, Vn

The program calculates the capacity, Vn, from Equation 9-17:

The program also checks to verify the Vn max value from Equations 9-18 and 9-19 (or interpolation between them) that is reported in the detail report is not exceeded.

Vns is only required if Vu > Phi*Vnm. If Vu < Phi*Vnm, then the program will not add any shear reinforcement and Vns = 0. If Vns is required, then the program will back calculate a spacing, s, that will both satisfy the steel shear capacity required and satisfy the maximum reinforcement spacing . This shear spacing is reported in the detail report.

If Vn max must be exceeded to pass the code check, the program will use Vn max as the capacity (so the wall fails in shear) and state "Over Allowable" for the Shear Steel Spacing.

Note: The M in the Vnm equation above is taken as the maximum moment in the region instead of the moment at the location where the shear is maximum. This is generally a conservative assumption.

Out of Plane Design - Strength

Out of Plane Axial Strength, Pn at max Mom

Here there are two different possible calculations.

If there is out-of-plane moment on the walls this is calculated from Section 9.3.5.4.2 as follows:

If there is no out-of-plane moment this is calculated from Equations 9-15 and 9-16:

Note:

Out of Plane Moment Strength, Mn

This calculation comes from the Commentary of Section 9.3.5.2 as follows:

The program is actually using an interaction diagram for out of plane bending as well. However, the code places a limit on axial force from Section 9.3.5.4.2. This limit essentially means that only the lower portion of the interaction diagram will be used. In this lower portion of the interaction diagram, the bending capacity changes in a linear fashion with respect to axial force.

Thus, the equation above is nearly identical to the value that the program's interaction diagram will produce.

Note:

Out of Plane (Slender) Moment Demand, Mu

The out of plane demand moment, Mu, comes from the finite element analysis only. Equation 9-23 gives a formula for calculating the midheight moment due to out of plane loading, axial eccentric loading, and P-Little Delta effects. In RISA the first two portions can be captured by modeling the loads accordingly. Eccentric axial loading would need to be modeled with both a vertical load and a moment. The P-Delta analysis that RISA uses during the Finite Element solution does not account for P-Delta effects on plate elements or wall panels themselves. Instead the program captures P-Little Delta effects from the iterative procedure shown in the Moment and Deflection Amplification section below. This is very similar to that provided in the UBC and MSJC slender wall design provisions.

Out of Plane (Slender) Deflection, δs

Out of plane deflections are calculated based on the Wall's Finite Element Analysis using a modified thickness, tmod, for the wall plates. The modified thickness is calculated using the wall panel's out of plate cracked moment of inertia, Icr, which can be input in the Advanced tab of the Wall Panels spreadsheet.

Note: The original thickness of the wall panel is the actual thickness of the wall panel, not to be confused with the nominal thickness.

RISA-3D then uses Finite Element Analysis using the modified thickness of the plates to calculate the out of plane deflection of the wall.

Unreinforced Masonry Design - ASD

Out of Plane Bending and Axial Design - ASD

For out of plane design for axial and bending the program performs 3 checks: a compression check, a tension check, and a slenderness check.

Compression Check (per Equation 8-11)

where:

Tension Check (per Section 8.2.4.2)

where:

Slenderness Check (per Equation 8-12)

where:

Note: If using an Unreinforced wall the program will ALWAYS use an ungrouted wall for design, regardless of what is set in the masonry wall design rules.

Out of Plane Shear Design - ASD

This stress is calculated from Equation 8-21:

Note: We do not use Equation 8-17 to calculate shear stress.

The program calculates the capacity, Fv, from Equation 8-22 shown above, except that only the Fvm term is considered. There is no way to add shear reinforcing steel.

The program also checks to verify we do not exceed the Fv max value from Equations 8-23 and 8-24 (or interpolation between them) that is reported in the detail report.

In Plane Bending and Axial Design - ASD

For unreinforced masonry we use the same design provisions from reinforced masonry. Thus, we still use reinforcement for both the boundary zones and shear reinforcement (if needed). See the reinforced sections for more information on this design.

Note: Because this type of design is very uncommon it is not currently available.

In Plane Shear Design - ASD

The in plane shear stress, fv, is calculated as follows:

The in-plane shear stress capacity, Fv, is calculated from Section 8.2.6.2. Because we do not know whether the wall is in running bond or not we omit options (c), (d), (e) and (f).

Unreinforced Masonry Design - Strength

Out of Plane Bending and Axial Design - Strength

For unreinforced masonry we perform the axial check per Section 9.3.5. For bending the program does not give results.

Note: Because this type of design is very uncommon it is not currently available.

In Plane Bending, Axial, and Shear Design - Strength

For unreinforced masonry we use the same design provisions from reinforced masonry. Thus, we still use reinforcement for both the boundary zones and shear reinforcement (if needed). See the reinforced sections for more information on this design.

Note: Because this type of design is very uncommon it is not currently available.

Masonry Lintel Design - ASD

Here we will talk about specific calculations regarding lintel design for allowable stress design.

Note: There is no lintel design for unreinforced lintels. Regardless of whether you design the wall as reinforced or unreinforced, all lintel design will use reinforcement. Because unreinforced lintels are very uncommon it is not currently available.

Shear Stress, fv

This stress is calculated from Equation 8-21:

where:

Shear Capacity, Fv

The program calculates the capacity, Fv, from Equation 8-25, which is shown in the previous In Plane Shear Capacity Fv section.

The program also checks to verify we do not exceed the Fv max value from Equations 8-23 and 8-24 (or interpolation between them) that is reported in the detail report.

Fvs is only required if fv > Fvm. If fv < Fvm, then the program will not add any shear reinforcement and Fvs = 0. If Fvs is required, then the program will back calculate a spacing, s, that will satisfy the steel shear capacity required. This shear spacing is reported in the detail report.

When shear reinforcement is required the program will also meet the d/2 or 48" spacing required by 8.3.5.2.1. If Fv max must be exceeded to pass the code check, the program will use Fv max as the capacity and state "Over Allowable" for the Shear Steel Spacing.

Note:

Bond Stress, u, and Bond Capacity U

The bond stress check is one that has been grandfathered in from the UBC-1997 specification section 2107.2.16 and is defined previously in the In Plane Bond Stress u section. Σo is the summation of the circumference of all vertical bars.

The bond stress capacity was defined previously in the Bond Stress Capacity U section.

Stresses fb and fs

The masonry bending stresses were defined previously in the Out of Plane Stresses fb and fs section.

Bending Capacity, Fm (Fb) and Steel Capacity, Fs

Section 8.3.4.2.2 states:

Section 8.3.3.1 defines the allowable steel stress, Fs.

Masonry Lintel Design - Strength

Here we will talk about specific calculations regarding lintel design for strength design.

Note: There is no lintel design for unreinforced lintels. Regardless of whether you design the wall as reinforced or unreinforced, all lintel design will use reinforcement. Because unreinforced lintels are very uncommon it is not currently available.

Shear Strength, Vn

The program calculates the capacity, Vn, total from Equation 9-17, which was shown previously in the In Plane Shear Strength Vn section.

The program also checks to verify the Vn max value from Equations 9-18 and 9-19 (or interpolation between them) that is reported in the detail report is not exceeded.

Vn,steel is only required if Vu > Phi*Vn,masonry. If Vu < Phi*Vn,masonry, then the program will not add any shear reinforcement and Vn,steel = 0. If Vn,steel is required, then the program will back calculate a spacing, s, that will satisfy the steel shear capacity required. This shear spacing is reported in the detail report.

If Vn max must be exceeded to pass the code check, the program will use Vn max as the capacity (so the wall fails in shear) and state "Over Allowable" for the Shear Steel Spacing.

Note: The M in the Vnm equation above is taken as the maximum moment in the region instead of the moment at the location where the shear is maximum. This is generally a conservative assumption.

Moment Strength, Mn

Lintel design in RISA does not account for axial force, thus Mn is calculated simply from:

Here are the calculations of other values reported in the detail report:
