Beam Deflection Ratio Options


RISA-3D v16.0.4 introduces an enhancement that will allow for more control over the beam deflection ratio through Deflection Ratio Options. As part of the member properties, you can now designate the ends of single and multi-span beams as a cantilever or supported. This will determine whether the beam deflection ratio is calculated as L’/y’ (supported) or 2L’/y’ (cantilever).

Modifying Members

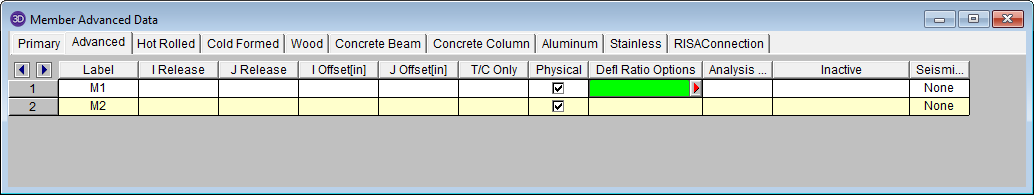

From the Members spreadsheet, go to the Advanced tab, where you can designate the Defl Ratio Options.

Defl1

Note: These options are only applicable to members designated as beams. By default, the deflection ratio will be calculated automatically, either as a supported member or as a cantilever.

Defl2

An example of when the deflection ratio option can be useful is if the beam deflection ratio of a member is calculated by the program as a cantilever, but you consider it to actually be supported. You can then set the deflection ratio options to explicitly specify that it is supported and the beam deflection ratio will be adjusted accordingly.

Single span beams can be designated as supported on both ends, or cantilevered from either end. In addition, multi-span beams have the option to be designated as a double cantilever, where both ends are free.

You can also click on the member to open up the Member Properties and set the deflection ratio options in the Additional Properties section.

Defl3

Viewing Results

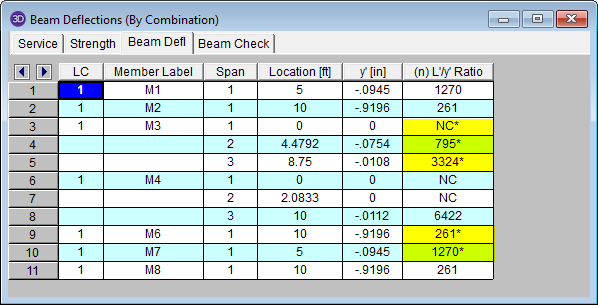

As you view the beam deflection results in the Beam Defl tab of the Member Deflections spreadsheet, all the ratios that were modified by setting the deflection ratio options will be denoted with an asterisk suffix. The reported location will correspond with the location of maximum relative deflection.

Defl4

Using the deflection ratio options will not change any global deflection, and is primarily used when designing members based on allowable deflection ratios.


Tags: RISA-3D Deflection Analysis
